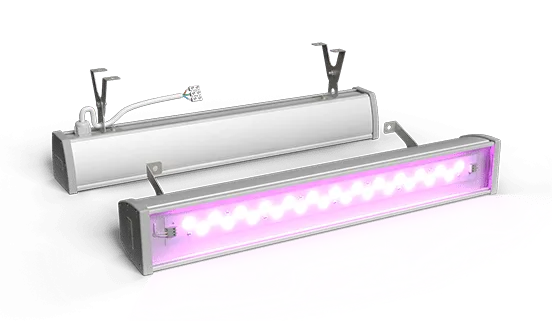

ECOLED-BIO-100W-xx F-Matrix

ECOLED-BIO-100W F-Matrix LED grow light for greenhouses and professional horticulture
Power consumption, W
100
Photon flux (PPF), µmol/s
230
Efficacy (PPE), µmol/J
2,30
Spectrum
SP1, SP2, SP3
Light distribution curve
G60, G90 - Deep (60 °, 90 °), D120 - Cosine (120 °), S140 - Wide (140 °)
LEDs manufacturer
COB Lumileds
Ingress protection, IP
IP66
Impact protection, IK
IK10
Supply voltage
175–265 V, 50±5 Hz, AC
Power factor, cos φ
≥ 0,95
Operating temperature, °C
−40…+50
Service life, h
≥ 50 000
Dimming / control
PWM (optional)
Luminaire dimensions, mm
500 × 170 × 110
Package dimensions, mm
550 × 200 × 120
Net weight, kg
3,2
Gross weight, kg
3,6
Housing material
Extruded aluminium alloy
Diffuser material
Borosilicate glass
Фитосветильник ECOLED-BIO-100W-xx F-Matrix, авпвапв Фитосветильник ECOLED-BIO-100W-xx F-Matrix, вапвапва Фитосветильник ECOLED-BIO-100W-xx F-Matrix Фитосветильник ECOLED-BIO-100W-xx F-Matrix Фитосветильник ECOLED-BIO-100W-xx F-Matrix Фитосветильник ECOLED-BIO-100W-xx F-Matrix

Lamps requirements estimation

10 meters
3 m
200 m
50 meters
1 m
150 m
5 meters
1 m
6 m
13 klx
1 klx
25 klx
Send Request

Send order

Free of charge lamps test drive
Order
Free of charge lighting design
Order

About the Company

ECOLED-Trade Company implements projects based on unique LED phyto-lamps, which are designed to create new and modernize existing lighting systems in greenhouses under the ECOLED-BIO brand from the Russian manufacturer of the Light and Electric Technologies Group of Companies (LET GC LLC), Perm
